A strong jewelry tech pack turns a creative idea into a brief that a manufacturer can price, review, and sample consistently. For buyers, the goal is not to create a perfect engineering document. It is to remove the assumptions that make quotes difficult to compare and first samples harder to approve.
Key takeaways
- Show construction, not only appearance. Use enough views to reveal how the piece is assembled.
- Make every cost driver measurable. Define dimensions, materials, stones, plating, finish, and critical tolerances.
- Separate fixed requirements from preferences. Give the supplier room to optimize only where you intend it.
- Set the market before the test plan. The destination and product type determine which evidence matters.
- Control every revision. Use one file owner, version dates, and written approvals.
Jump to: why vague briefs create incomparable quotes · 7-section checklist · red flags · a good first sample brief · how AIU turns a brief into a quote · FAQ
Why vague briefs create incomparable quotes
“Gold-tone necklace with clear stones” leaves essential cost drivers open. One supplier may assume brass, another stainless steel. One may quote a light flash finish, while another allows for a specified plating build. Stone type, setting method, chain construction, clasp, polishing level, packaging, and testing may also differ.
The resulting prices are not true alternatives. Each supplier is pricing a different product. A disciplined brief creates a common baseline, so buyers can assess cost, manufacturability, communication quality, and quality-control thinking. Before finalizing the finish, review AIU’s guide to writing plating specifications.

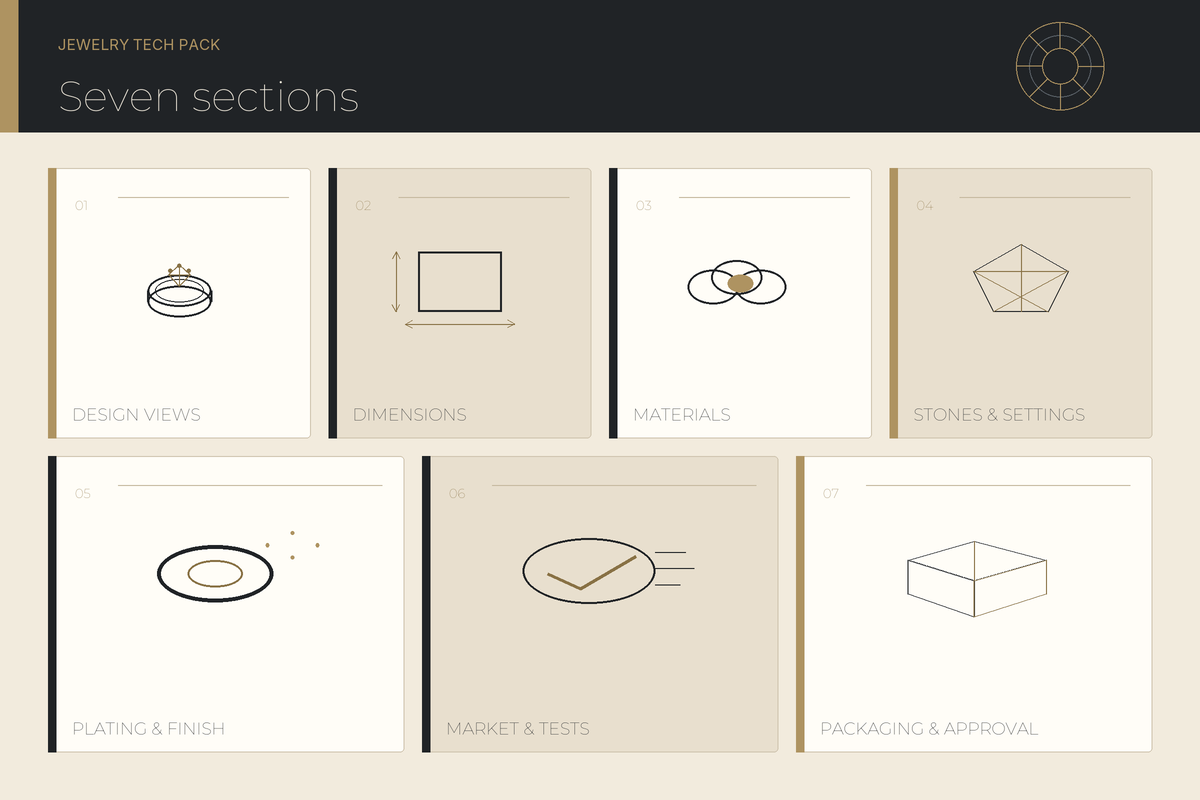

The 7-section jewelry tech pack checklist
1. Design intent and views
Include front, back, side, top, and open or closed views as relevant. Add close-ups of hinges, clasps, stone seats, solder points, engraving, and logo placement. Label every SKU and colorway. Mark which visual details are essential and where the factory may recommend a production-friendly alternative.
2. Dimensions and tolerances
Specify overall length, width, thickness, ring size, chain length, pendant drop, post length, opening size, and approximate target weight where useful. Use one measurement system. Apply tolerances only to critical dimensions, and identify the measurement points clearly rather than writing a single general tolerance.
3. Materials and components
Name the base metal and each purchased component: chain, jump ring, clasp, earring back, spring, pin, cord, or insert. State whether components are custom or standard. If an exact grade is undecided, ask the supplier to quote clearly labeled options instead of allowing an unrecorded substitution.
4. Stone specifications and setting
List stone material, shape, cut, dimensions, quantity, color range, and placement by SKU. Define the setting method—prong, bezel, pavé, channel, glue, or another construction—and any appearance criteria such as alignment or visible gaps. A rendering does not replace a stone map.
5. Plating and finish
State plating color, layer sequence where known, thickness requirement or requested options, exposed versus hidden surfaces, and finish standard: high polish, satin, brushed, hammered, antiqued, or mixed. Add a physical color reference or approved master when available. Avoid relying on “standard gold” because color and process assumptions vary.
6. Target market and testing
Identify the intended sales market, wearer category, product type, and any buyer-specific restricted-substance or performance requirements. Do not ask for every available test by default. Match the test scope, sample selection, and documentation to the destination and claim. AIU’s overview of choosing jewelry testing reports can help structure that decision.
7. Packaging, approval, and version control
Describe the individual packing method, protective materials, labeling, barcode position, and any presentation requirements. Name the approver, approval stages, and acceptable reference standard. Put a revision number and date on every file. Record comments against the relevant SKU and retire superseded versions.
Red flags before requesting a sample quote
- Measurements conflict between the drawing, specification table, and reference sample.
- Images show several constructions without identifying the required one.
- Stone size is described only by carat weight or a visual reference.
- Plating is defined by color name alone.
- Packaging and testing are requested but not scoped.
- Multiple files carry edits with no single current version.
A supplier that spots these gaps and asks focused questions is giving you useful information. Use that behavior alongside capability, evidence, and process fit when screening a jewelry supplier. You can also review AIU’s honor and qualification page.
What a good first sample brief looks like
A useful first brief is compact but decisive: one cover page with project scope, one SKU table, dimensioned views, a material and component schedule, a stone map, finish references, market and testing notes, packaging instructions, and an approval block. Open questions belong in a clearly labeled decision list.
For example, a buyer may fix silhouette, outer dimensions, logo position, base metal, stone layout, and finish appearance while inviting recommendations on clasp gauge and hidden reinforcement. That distinction protects the design while making room for practical engineering. Browse AIU’s product portfolio for category references, then specify the details that make your design distinct.
How AIU turns a brief into a quote
AIU reviews the supplied views, specifications, components, finish, stones, market requirements, packaging, and approval criteria as one connected brief. Manufacturing questions are raised before assumptions become hidden quote inputs. Where requirements are incomplete, options can be separated and labeled for buyer decision.
The quote can then reflect an agreed construction and scope rather than a visual guess. This gives the buyer a cleaner basis for evaluating the proposed sample and recording changes for the next revision.
Frequently asked questions
Do I need CAD before requesting a sample quote?
Not always. Clear dimensioned sketches and references may be enough for an initial review. The supplier should identify where CAD or further engineering is needed.
Should every dimension have a tolerance?
No. Prioritize dimensions that affect fit, function, stone security, assembly, or visual alignment. Excessively tight general tolerances can distort pricing without improving the product.
Can a reference photo replace technical views?
No. A reference can communicate mood, proportion, or finish, but it rarely reveals back construction, thickness, attachments, or exact scale.
How should I specify plating?
Define color, layer structure where applicable, thickness requirement or requested alternatives, finish, surface coverage, and an approved color reference if available.
What if testing requirements are not finalized?
State the target market and product category, mark testing as pending, and ask which decisions are needed. Keep unconfirmed testing outside the fixed quote baseline.
How do I manage sample changes?
Issue one consolidated comment sheet, identify the sample and revision reviewed, attach marked images, and confirm which changes are mandatory before releasing the next version.
Turn your current brief into a quote-ready specification
Upload one existing brief for a line-by-line manufacturability review; we will return a marked-up requirements list before quoting.
